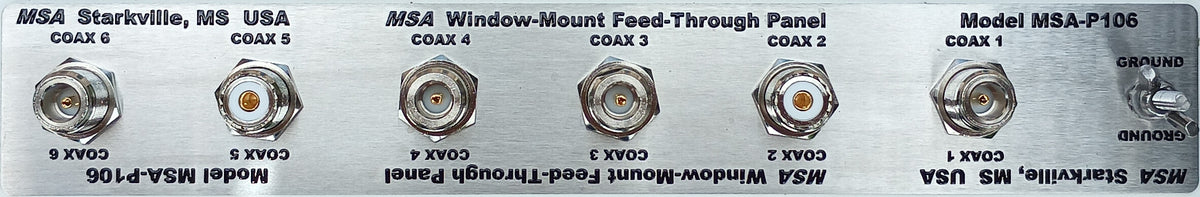

MSA-P106-E-KIT | 2 SO-239, 4 N-Type

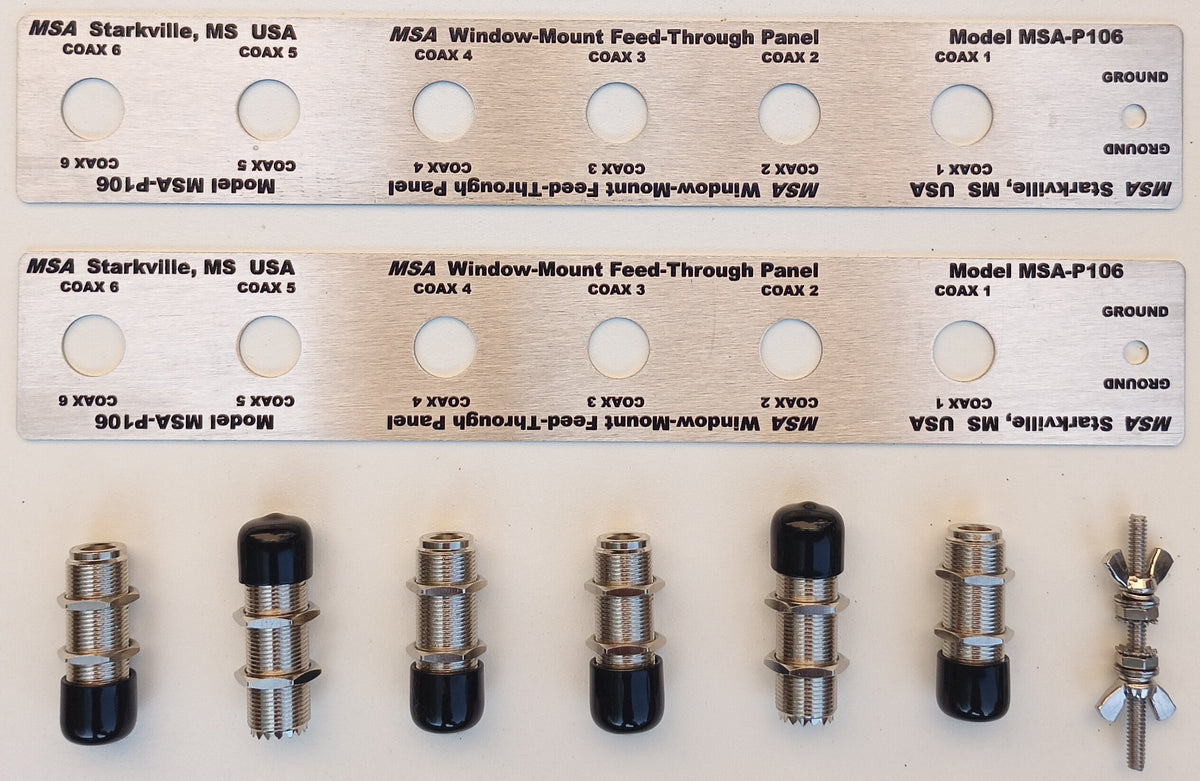

Use this kit to install coaxial feed-through connectors to a board or other location of your own. This kit includes two SO-239 barrel connectors, four N-type connectors, two stainless steel plates, six protective vinyl caps, and one ground post connection hardware. The SO-239's are 2" long, nickel-plated brass with Teflon dielectric and gold-plated center pins. The N-Type's are 1.75" long, and also nickel-plated brass with Teflon dielectric and gold-plated center pins. The fully threaded ground post hardware is all stainless steel. A template is also included for you to mark where you need to drill holes in your material.

The plates are currently 11 3/4" long x 1 7/8" tall, with 10 15/16" between outermost edges of outermost holes. Once the current stock of these plates are gone, the plates will be shorter. They are currently barely too long to fit between 12" on center (OC) stud spacing, which has 10 1/2" space in between studs. As it is right now, any wall spacing between studs wider than 10 15/16" will be perfect. Once this change is made, we will change the information here.
