MSA-103-B-KIT | 2 SO-239, 1 N-Type

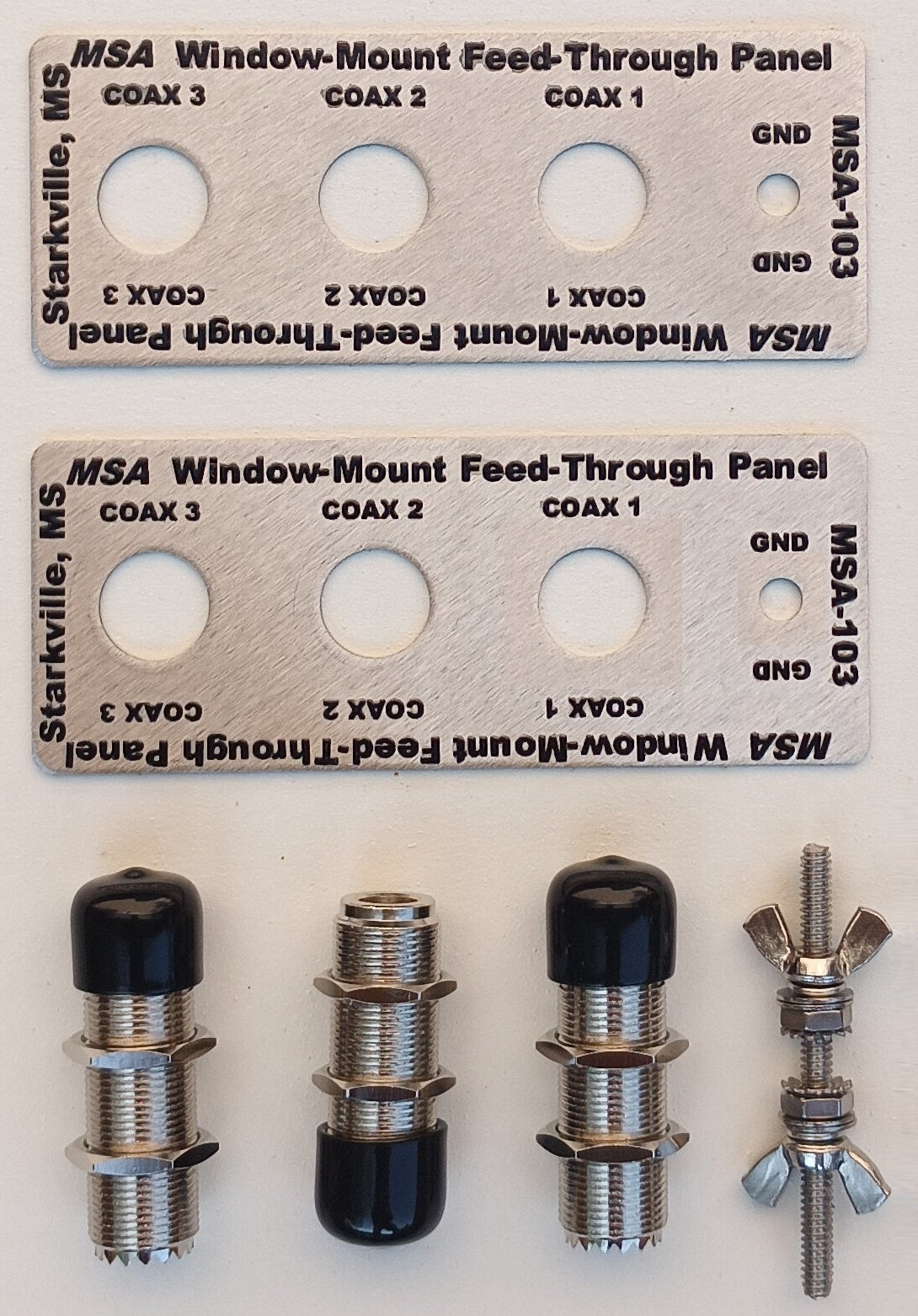

Use this kit to install coaxial feed-through connectors to a board or other location of your own. This kit includes two SO-239 barrel connectors, one N-type connector, two stainless steel plates, three protective vinyl caps, and one ground post connection hardware. The SO-239's are 2" long, nickel-plated brass with Teflon dielectric and gold-plated center pins. The N-Type's are 1.75" long, and also nickel-plated brass with Teflon dielectric and gold-plated center pins. The fully threaded ground post hardware is all stainless steel. A template is also included for you to mark where you need to drill holes in your material.

The plates are 4 and 3/4" long x 1 and 7/8" tall, with 4" between outermost edges of outermost holes. Any wall spacing between studs as wide or wider than 4" will be perfect.

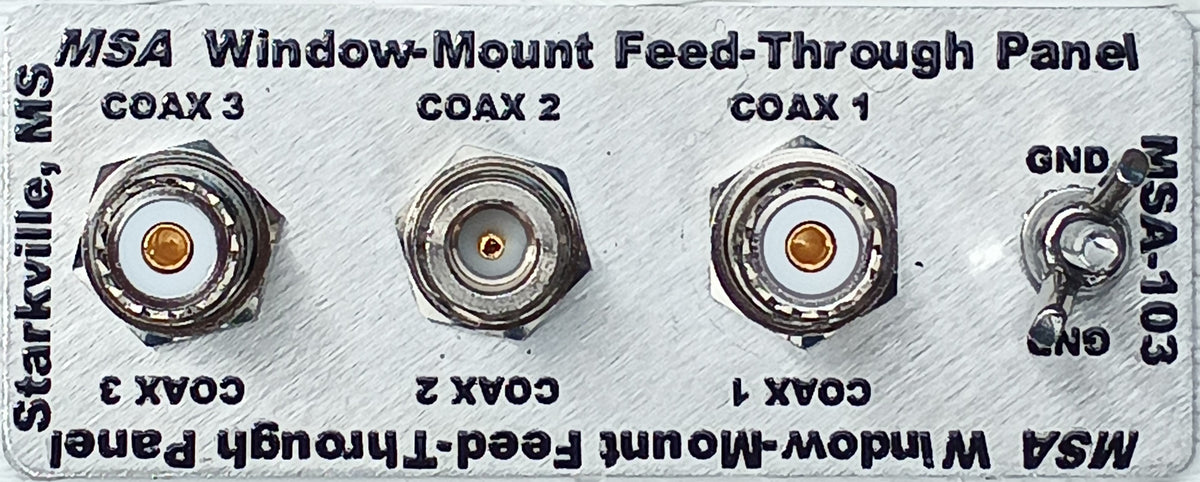

More images of this kit coming soon. This image shows all parts assembled.
