MSA-103-A-KIT | 3 SO-239

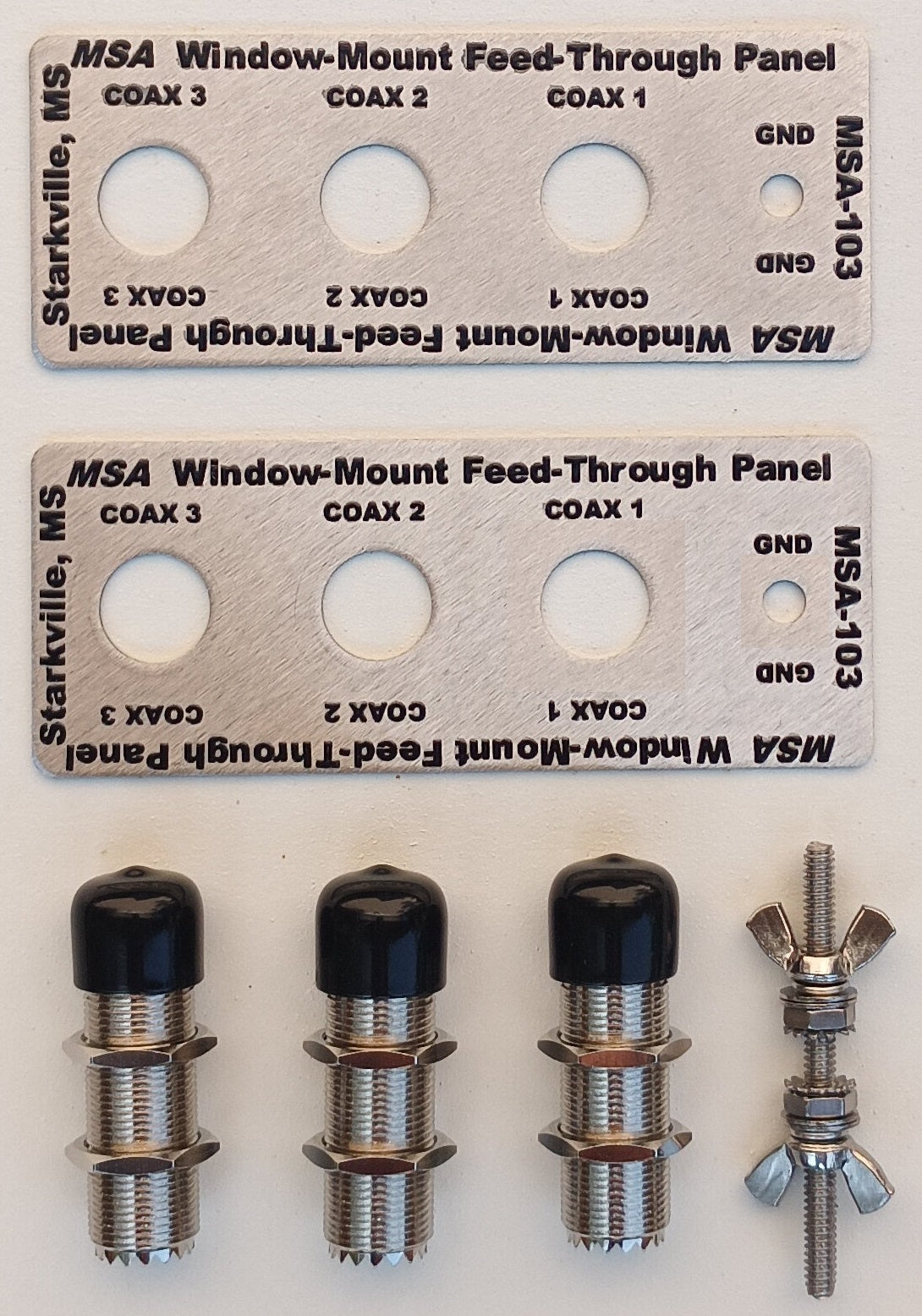

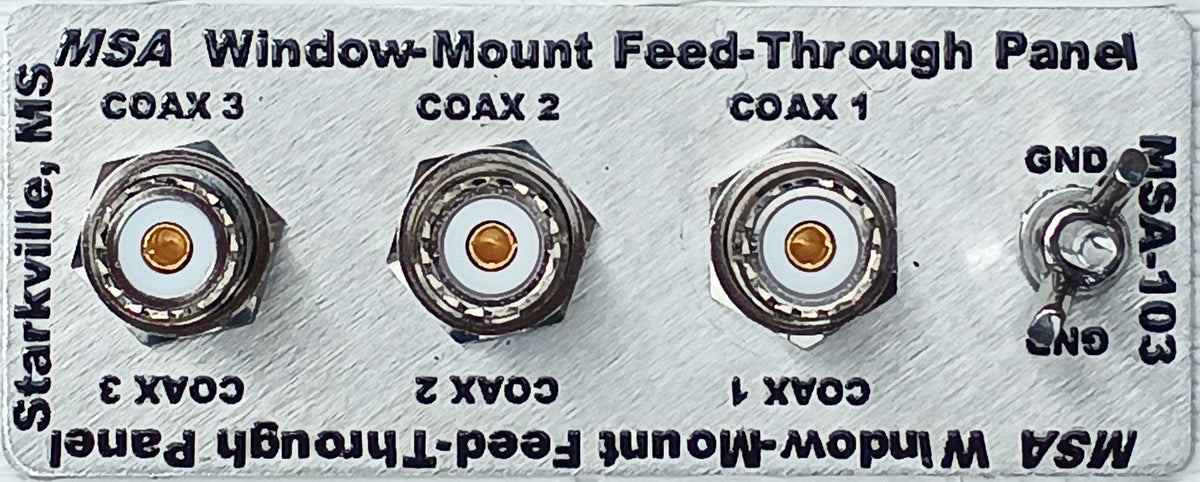

Use this kit to install coaxial feed-through connectors to a board or other location of your own. This kit includes three SO-239 barrel connectors, two stainless steel plates, three protective vinyl caps, and one ground post connection hardware. The SO-239's are 2" long, nickel-plated brass with Teflon dielectric and gold-plated center pins. The fully threaded ground post hardware is all stainless steel. A template is also included for you to mark where you need to drill holes in your material.

The plates are 4 and 3/4" long x 1 and 7/8" tall, with 4" between outermost edges of outermost holes. Any wall spacing between studs as wide or wider than 4" will be perfect.
